LCD Display Mini CDMA 800mhz Signal Booster Mobile Phone Signal Repeater with Yagi Antenna / Panel Antenna
LCD Display Mini CDMA 800mhz Signal Booster Mobile Phone Signal Repeater with Yagi Antenna / Panel Antenna
- Product Code: LCD Display Mini CDMA 800mhz Signal Booster Mobile Phone Signal
- Availability: In Stock
$67.99
$122.43- Price in reward points: 5000

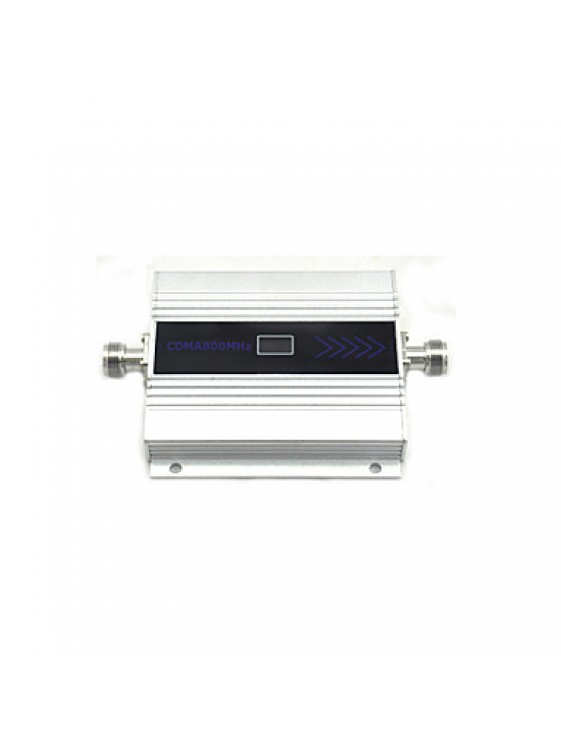

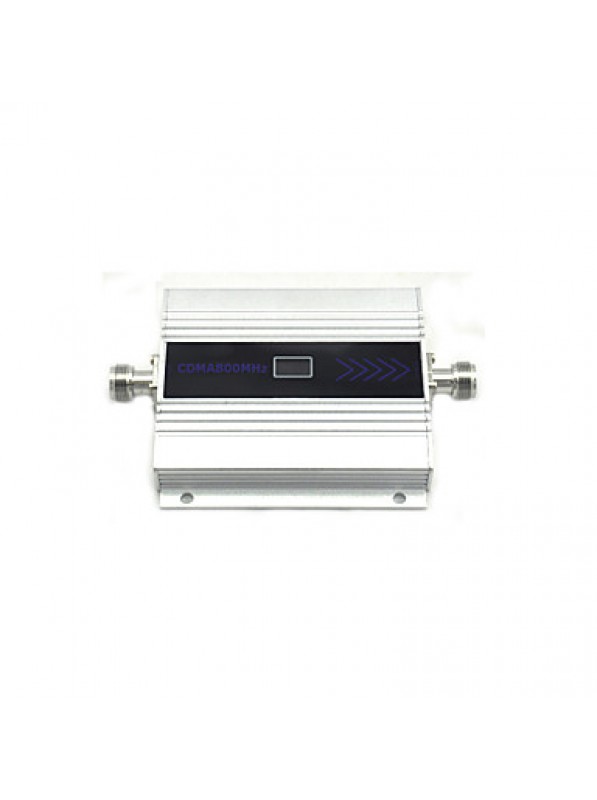

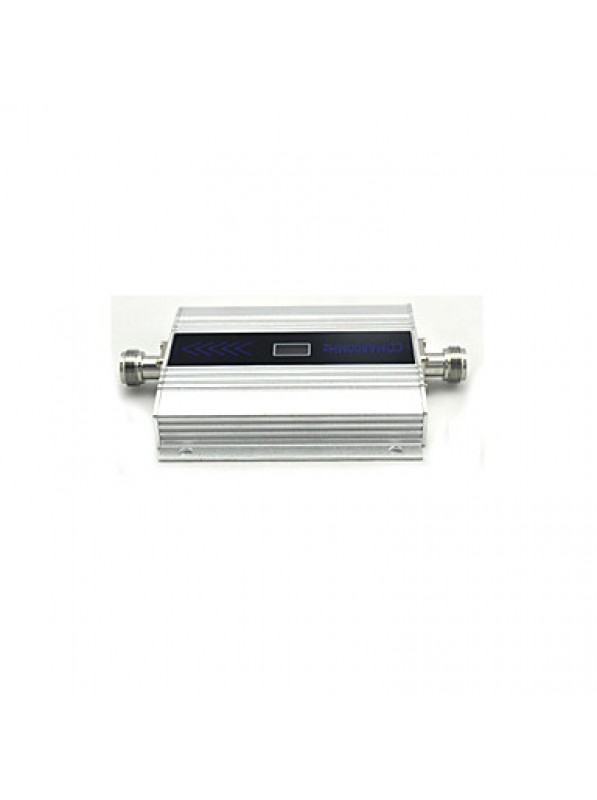

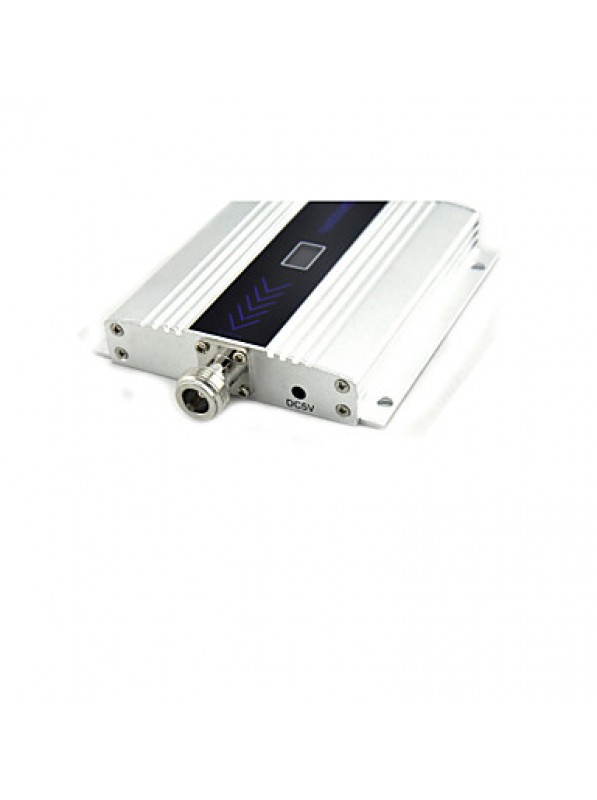

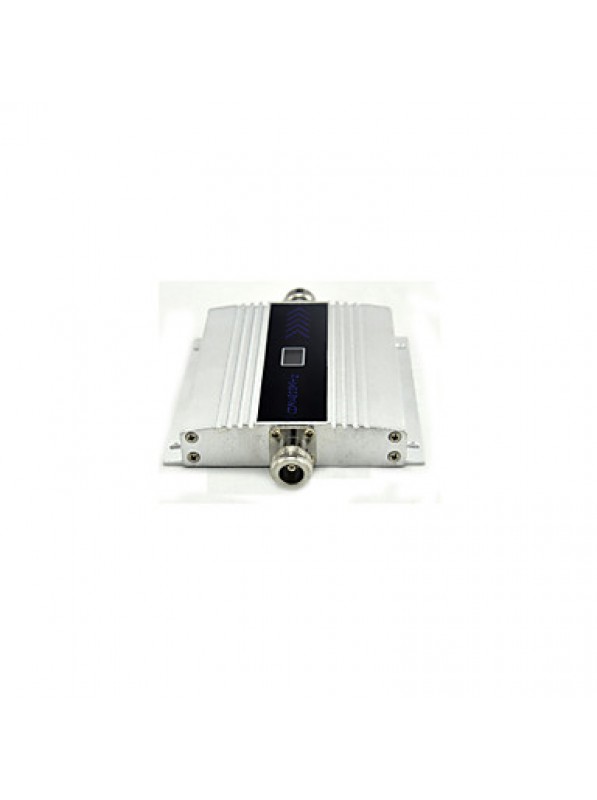

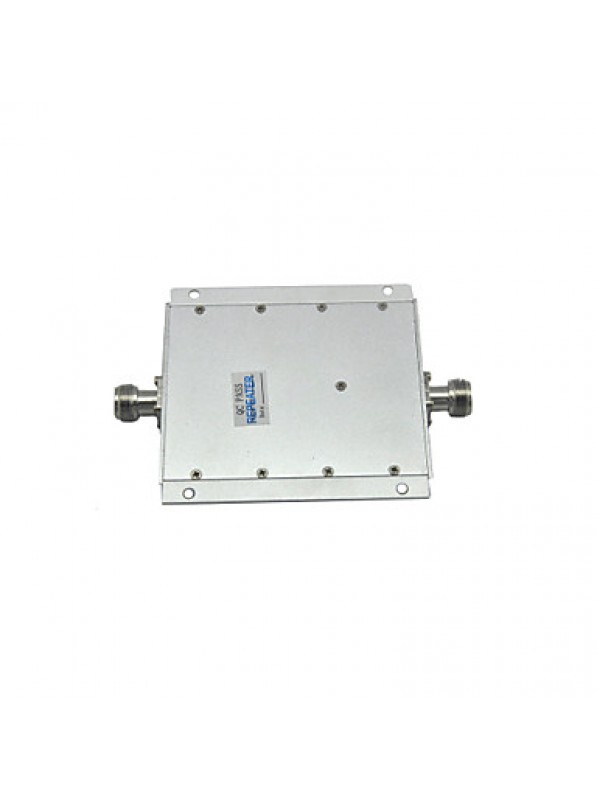

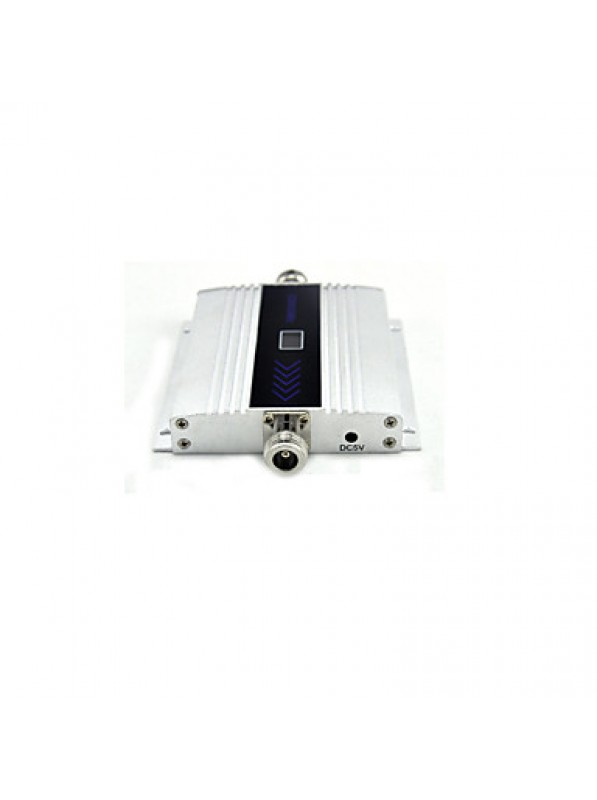

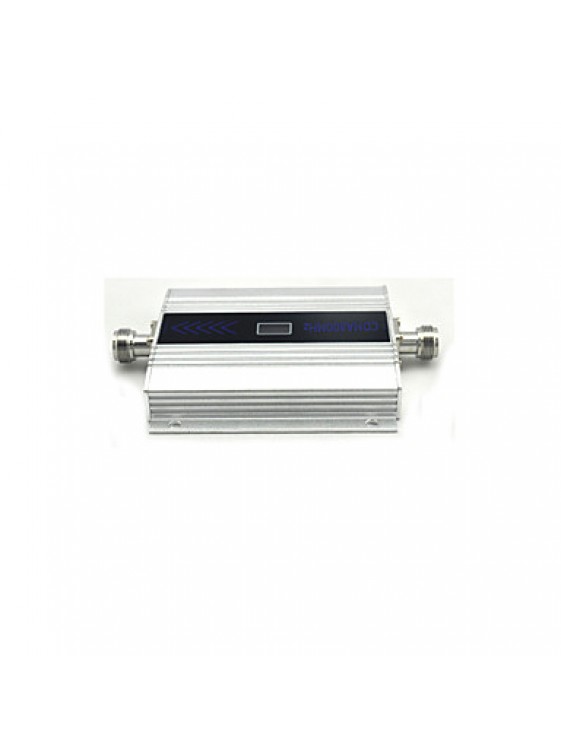

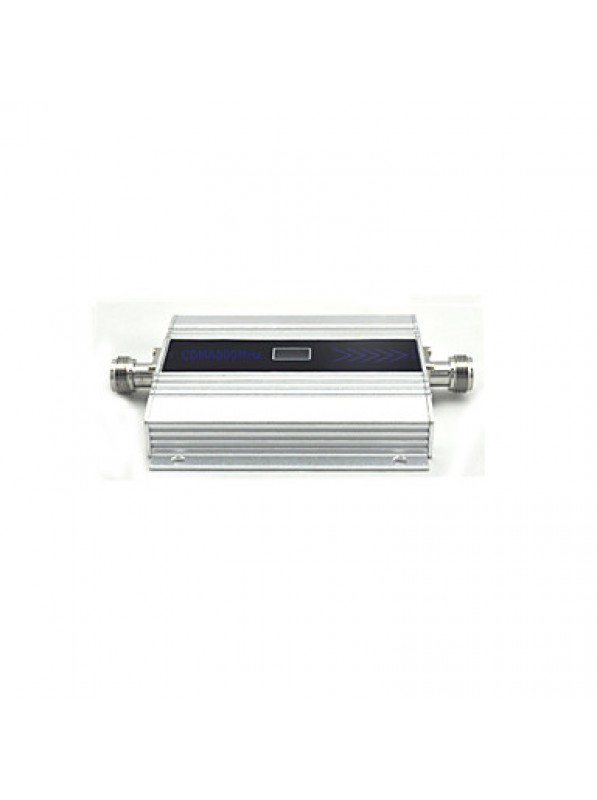

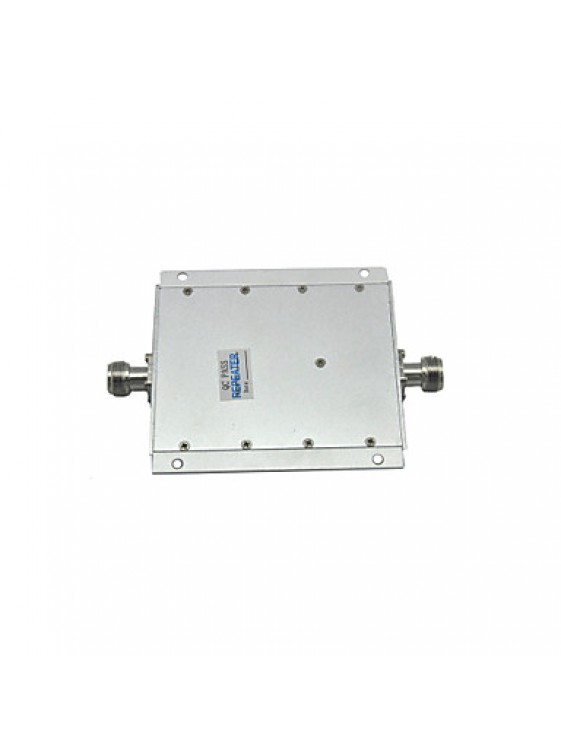

| Repeater | |
|---|---|
| Frequency range (Mhz) | UL824-849mhz DL869-894mhz, |
| Gain (dB) | 55Db ÷3db60Db ÷3db, |
| Max. Input Power Without Damage | -70~-40dBm , |
| Output Power (Bm) | +17dBm/ ÷3DBM, |
| Noise figure (dB) | 4.5db, |
| Transmission delay (┢s) | ●0.5 ┢s, |
| RF Connector | N -Female, |
| Coverage area (M) | 100, |
| I/O impedence (┯) | 50 ┯, |
| Environment Conditions | -10oC-50oC, |
| Power Supply | DC 5V, |
| Dimensions (LxWxH) (CM) | 14x10x2, |
| Gross Weight (KG) | 0.245, |

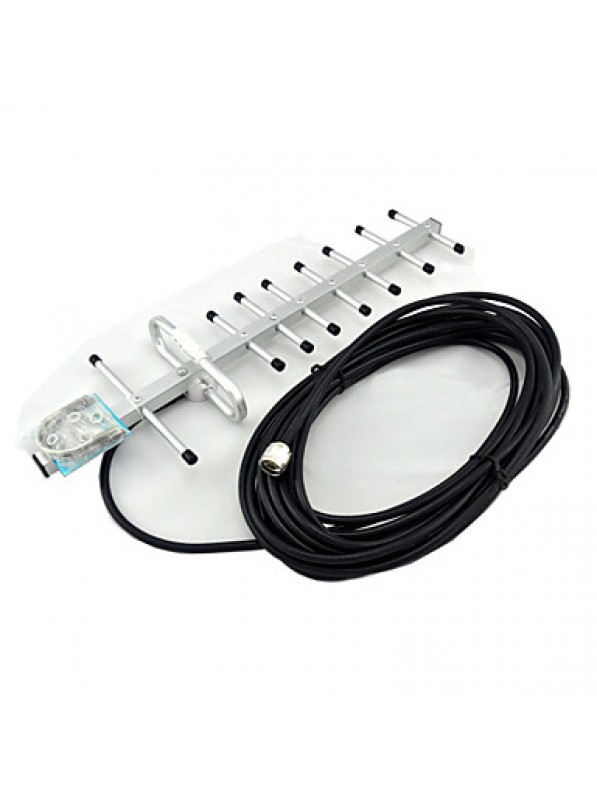

| Outdoor Antenna | |
| Usage type | Yagi Antenna, |
| Frequency range (Mhz) | 800-900mhz, |
| Gain (dB) | 13dbi, |
| Impedance(┯) | 75, |
| Lightning protection | DC grounded, |
| Connector Type | N Female, |
| Operating Temperature | -40 to +65▲C, |
| Dimensions (LxWxH) (CM) | 50x17x6, |
| Gross Weight (KG) | 0.81, |

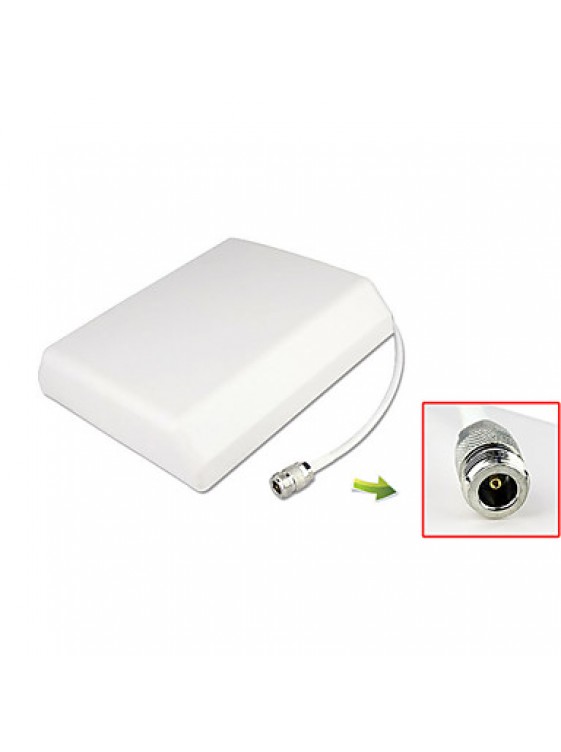

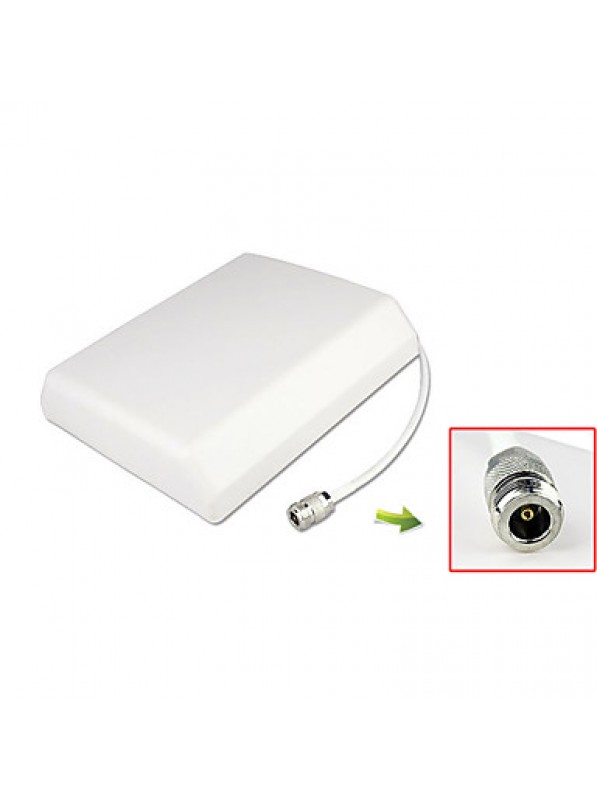

| Indoor Antenna | |
| Usage type | Panel Antenna, |
| Frequency range (Mhz) | 800-900mhz, |
| Gain (dB) | 7/8 dBi, |
| Maximum input power (W) | 50, |
| Impedance(┯) | 50, |
| Lightning protection | DC grounded, |
| Connector Type | N Female, |
| Radome material | Plastic, |
| Operating Temperature | -40 to +65▲C, |
| Dimensions (LxWxH) (CM) | 21 x 18 x 4.5, |
| Gross Weight (KG) | 0.45, |
| Cable | |
| Impedance(┯) | 75ohm, |
| Gross Weight (KG) | 0.61, |
| General | |

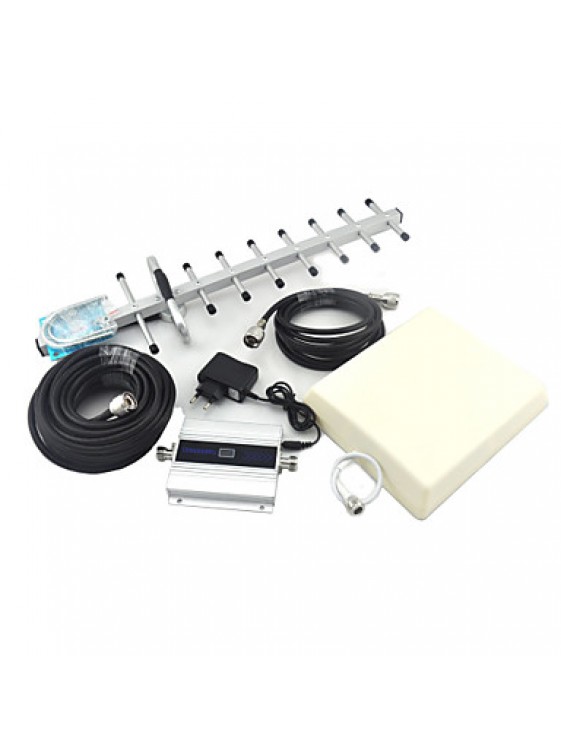

| What's in the box | 1 x Indoor Antenna,1 x Outdoor Antenna,1 x User Manual - English,1 x Mobile Signal Repeater,1* Power Supply, |
