Mini CDMA 850MHz PCS 1900MHz Mobile Phone Signal Booster Dual Band Signal Repeater with Ceiling / Log Periodic Antenna
Mini CDMA 850MHz PCS 1900MHz Mobile Phone Signal Booster Dual Band Signal Repeater with Ceiling / Log Periodic Antenna
- Product Code: Mini CDMA 850MHz PCS 1900MHz Mobile Phone Signal Booster Dual Ba
- Availability: In Stock
$119.99
$204.58- Price in reward points: 5000

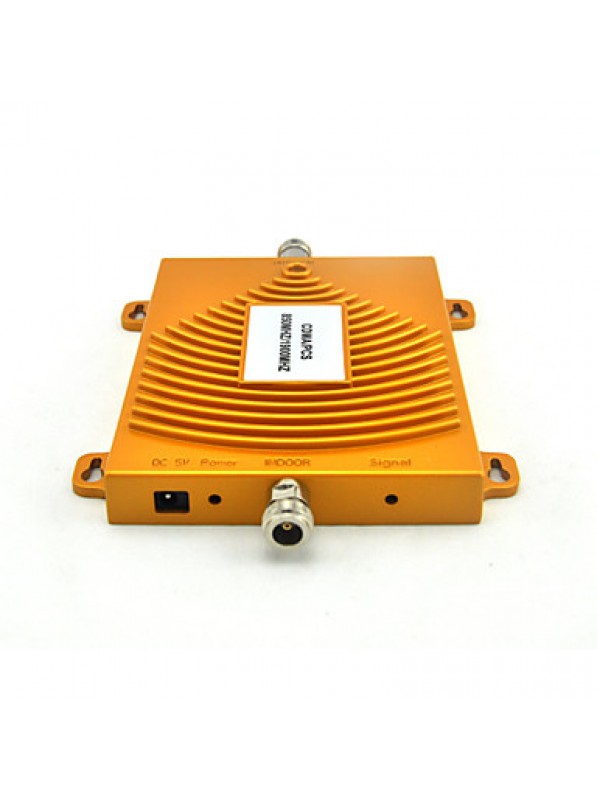

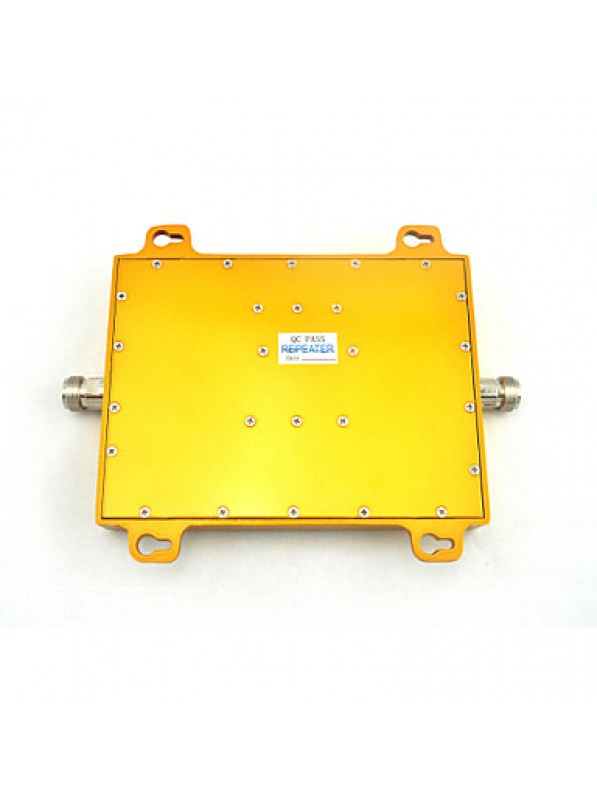

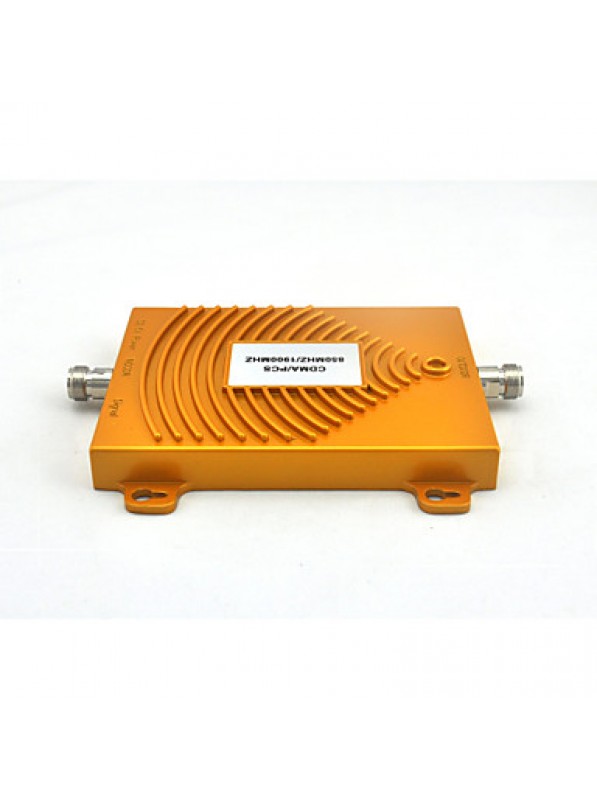

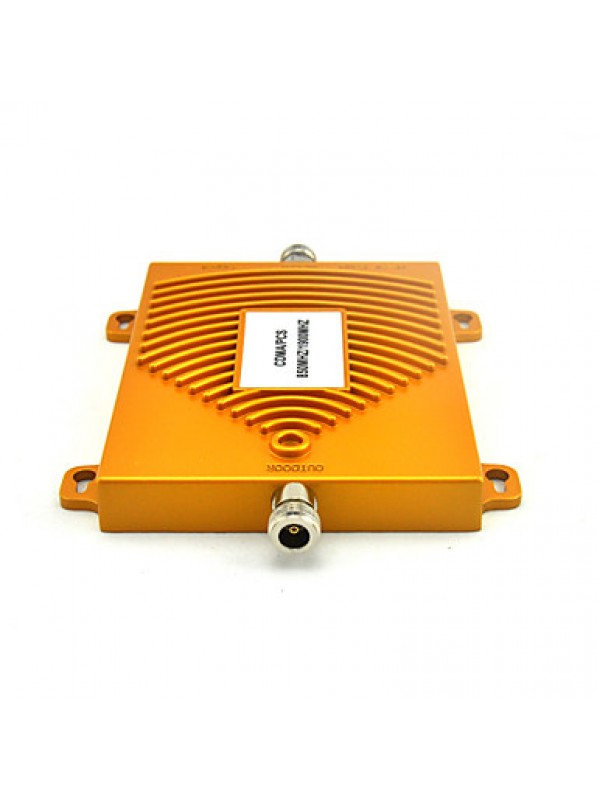

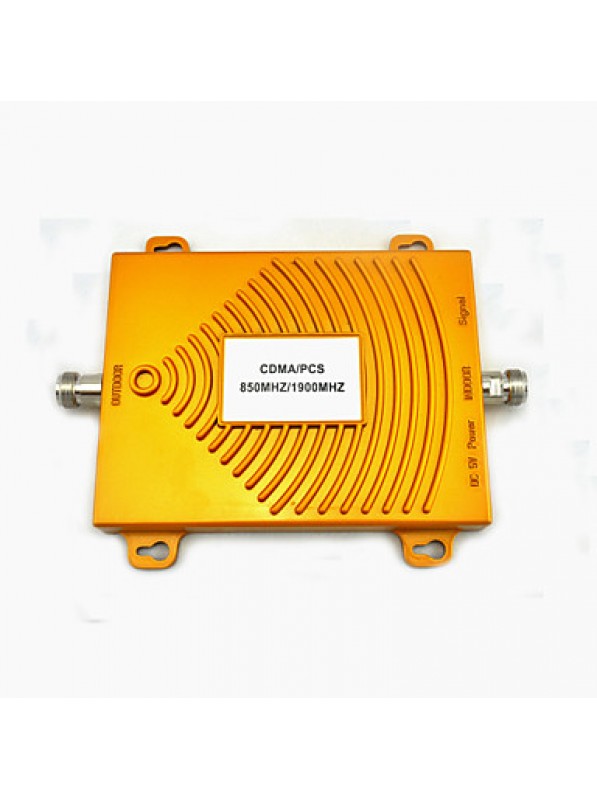

| Repeater | |
|---|---|
| Frequency range (Mhz) | CDMA/PCS 824-849/869-894MHz 1850-1910/1930-1990mhz, |
| Gain (dB) | 55/60db, |
| Max. Input Power Without Damage | -70~-40dBm , |
| Output Power (Bm) | +17dbm, |
| Noise figure (dB) | 4.5db, |
| RF Connector | N -Female, |
| Coverage area (M) | 50-100, |
| I/O impedence (┯) | 50 ┯, |
| Environment Conditions | -10oC-50oC, |
| Power Supply | DC 5V, |
| Dimensions (LxWxH) (CM) | 19.5*14.5*2.2, |
| Gross Weight (KG) | 0.645, |

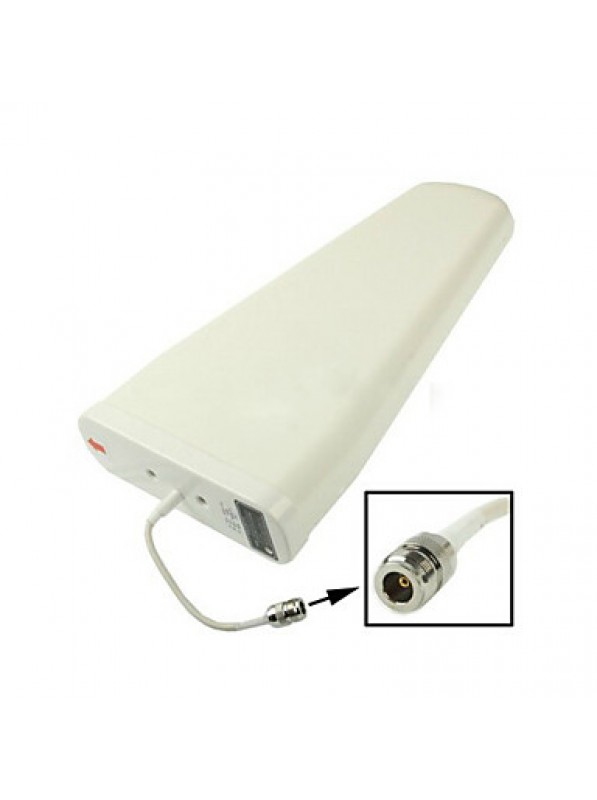

| Outdoor Antenna | |
| Usage type | LAP Antenna, |
| Frequency range (Mhz) | 900/1800mhz dual band,800-900mhz,900/1800/3G tri band, |
| Gain (dB) | 10/11dbi, |
| Maximum input power (W) | 50, |
| Impedance(┯) | 50, |
| Lightning protection | DC grounded, |
| Connector Type | N Female, |
| Radome material | Plastic, |
| Operating Temperature | -40 to +65▲C, |
| Dimensions (LxWxH) (CM) | 41*21*6.5, |
| Gross Weight (KG) | 0.86, |

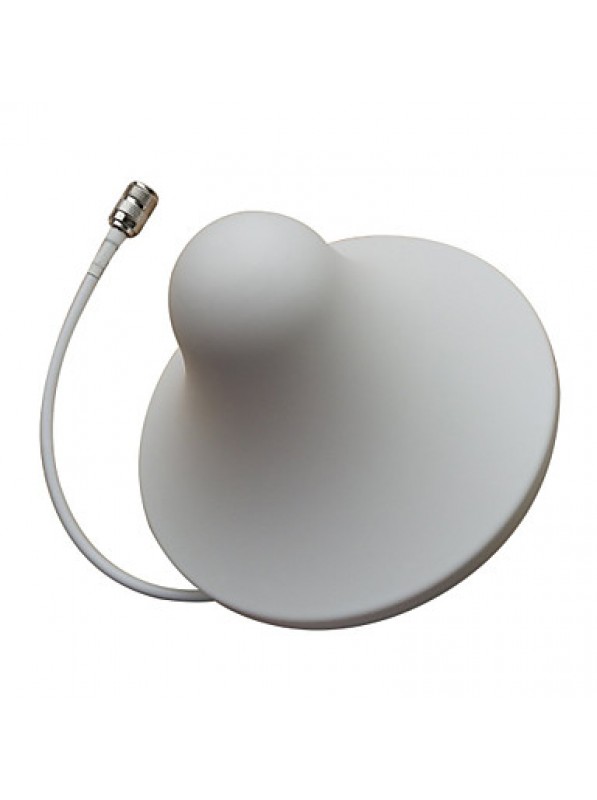

| Indoor Antenna | |
| Frequency range (Mhz) | 900/1800mhz dual band,800-900mhz,900/1800/3G tri band, |
| Gain (dB) | 2/5dbi, |
| Maximum input power (W) | 50, |
| Impedance(┯) | 50, |
| Lightning protection | DC grounded, |
| Connector Type | N Female, |
| Radome material | Plastic, |
| Dimensions (LxWxH) (CM) | 16.5*16.5*9.8, |
| Gross Weight (KG) | 0.23, |
| Cable | |
| Impedance(┯) | 75ohm, |
| Material | Plastic, |
| Gross Weight (KG) | 0.58, |
| General | |

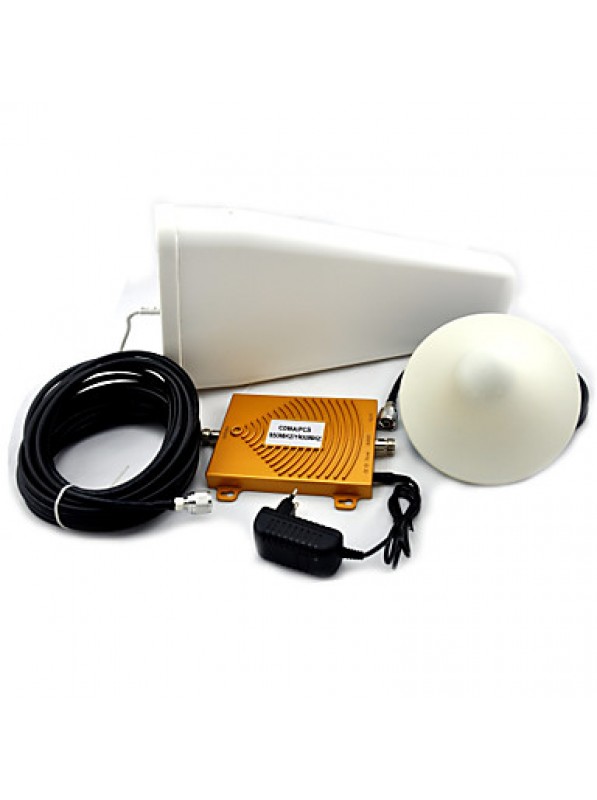

| What's in the box | 1* Power Supply,1 x Indoor Antenna,1 x Outdoor Antenna,1 x Mobile Signal Repeater,1 x User Manual - English, |
