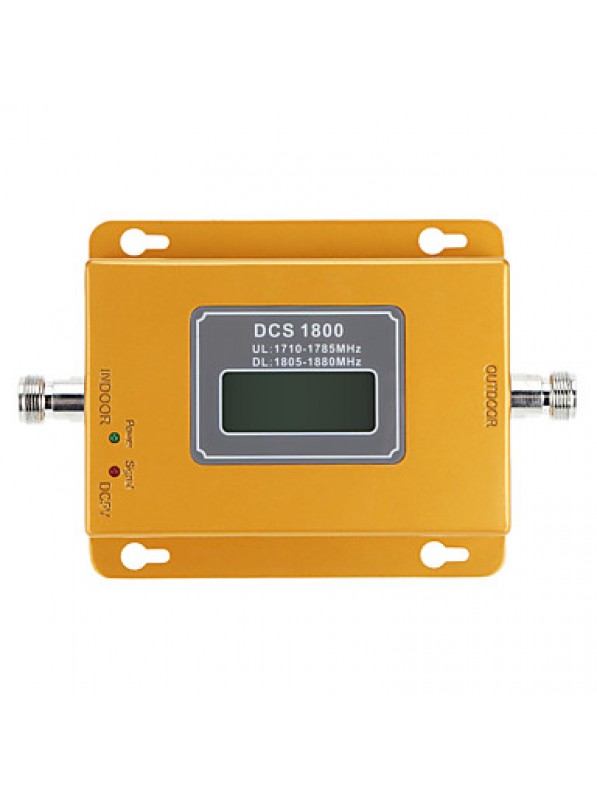

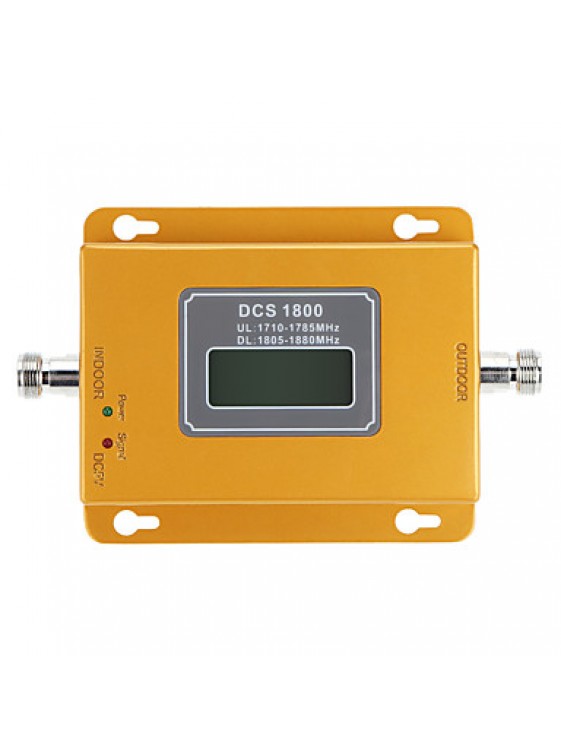

LCD DCS 1800MHZ Cell Phone Signal Amplifier DCS Repeater

0 reviews Write a review

Qty

Repeater
Frequency range (Mhz)	UL1710-1785mhz DL1805-1880mhz,
Gain (dB)	65DB,
Bandwidth	1800MHZ,
Ripple in Band	●8dB,
Max. Input Power Without Damage	0 dBm,
Output Power (Bm)	23DBM,
Noise figure (dB)	4.5db,
Return loss	●-8 dB,
Transmission delay (┢s)	●0.5 ┢s,
RF Connector	N -Female,
Coverage area (M)	100?,
Port VSWR	●1.5,
I/O impedence (┯)	50 ┯,
Installation Type	Wall Installation,
Environment Conditions	-10oC-50oC,
Power Supply	DC 5V,
Power Consumption (W)	0.2W,
Dimensions (LxWxH) (CM)	23.5124.5,
Gross Weight (KG)	0.56,

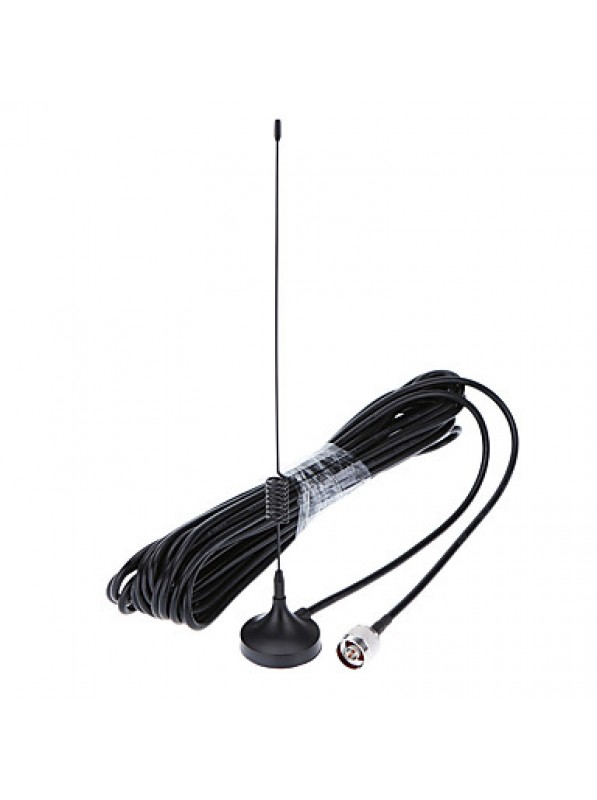

Outdoor Antenna
Usage type	Vehicle Use Sucker Antenna,
Frequency range (Mhz)	900/1800/3G tri band,
Gain (dB)	5DB,
Maximum input power (W)	0.5W,
Impedance(┯)	50┯,
Lightning protection	Direct Ground,
Connector Type	N Female,
Radome material	Plastic,
Mounting mast diameter (mm)	280,
Operating Temperature	-40 to +65▲C,
Dimensions (LxWxH) (CM)	3054,
Gross Weight (KG)	0.34,
Indoor Antenna
Usage type	Omni Antenna,
Frequency range (Mhz)	900/1800mhz dual band,
Gain (dB)	3db,
Lightning protection	DC grounded,
Connector Type	N Female,
Radome material	Stainless steel,
Mounting mast diameter (mm)	180mm,
Operating Temperature	-40 to +65▲C,
Dimensions (LxWxH) (CM)	21.5,
Gross Weight (KG)	0.02,
Cable
Impedance(┯)	50ohm,
Material	Copper,
Length (FT)	10,
Gross Weight (KG)	0.5,
General

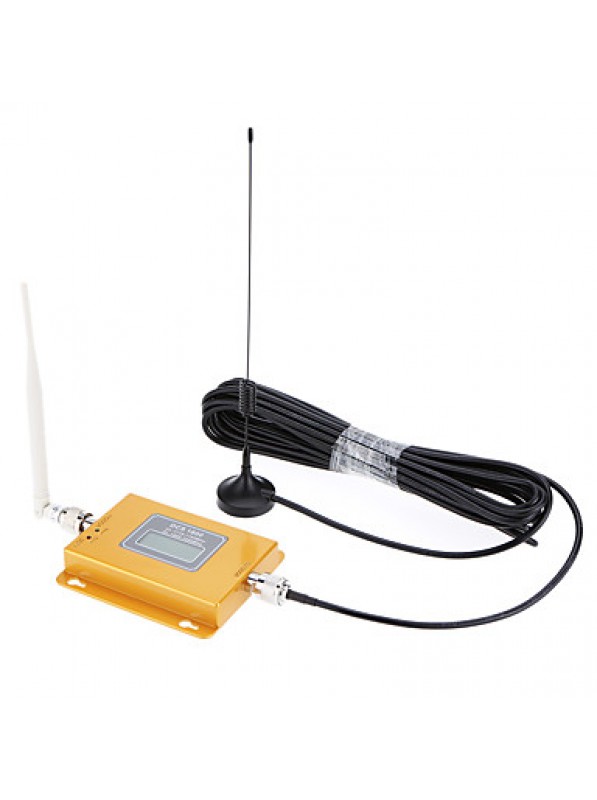

What's in the box	1 x Outdoor Antenna,1 x Mobile Signal Repeater,1* Power Supply,1 x Cable,1 x Indoor Antenna,
